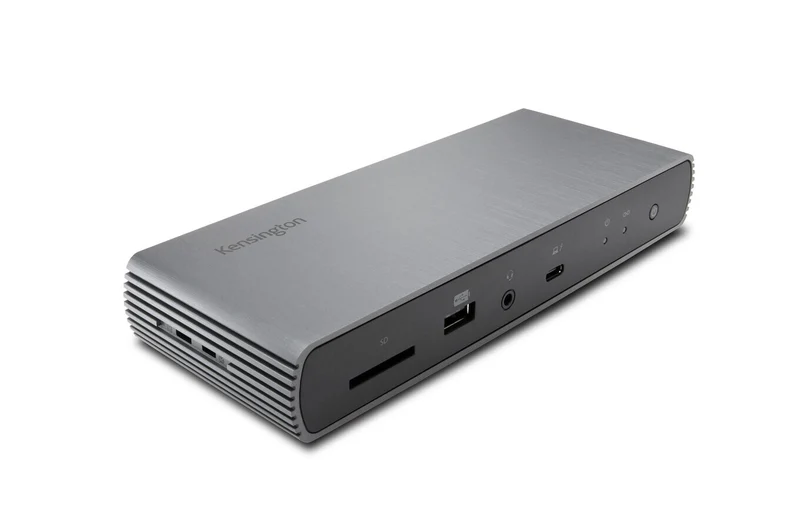

Kensington SD5700T Thunderbolt 4 Docking Station

SD5700T Thunderbolt 4 Docking Station

The first of a generation, the SD5700T Thunderbolt™ 4 Dual 4K Docking Station with 90W PD - Win/Mac offers premium Thunderbolt benefits now, and well into the future; compatible with Thunderbolt™ 4-enabled Windows 10 laptops and backward compatibility with Thunderbolt™ 3 MacBooks running macOS 11 (Big Sur) or later, supports Thunderbolt™ 3, Thunderbolt™ 4, USB-C and USB4 accessories and provides full power delivery, regardless of how many devices are connected. Features include 11-ports, Single 8K @ 30 Hz, or up to Dual 4K @ 60Hz video, 40Gbps data transfer speeds, UHS-II SD 4.0 card reader speeds, and more.

Ports & interfaces
DC-in jack	Yes
Headphone connectivity	3.5 mm
Headphone outputs	1
Combo headphone/mic port	Yes
Thunderbolt ports quantity	4
USB Power Delivery revision	3.0
USB Power Delivery up to	90 W
USB Power Delivery	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	1
Host interface	Thunderbolt 4
Connectivity technology	Wired

Network
Ethernet LAN data rates	1000,100,10 Mbit/s
Ethernet LAN (RJ-45) ports	1
Ethernet LAN	Yes

Performance
Compatibility	Engineered for Intel® Evo™ Laptop Accessory Program
Country of origin	China
LED indicators	Link, Power
Plug and Play	Yes
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Key lock	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes
Number of displays supported	2
HD type	8K Ultra HD
Data transfer rate	40 Gbit/s
Compatible memory cards	SD
Card reader integrated	Yes
Product colour	Grey

Power
Output voltage	20 V
Output current	9 A
Input current	2.5 A
AC input voltage	100 - 240 V

Software
Mac operating systems supported	Yes
Windows operating systems supported	Yes

Operational conditions
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	0 - 45 °C

Weight & dimensions
Weight	435 g
Height	30 mm
Depth	75 mm
Width	195 mm

Packaging data
Package weight	1.7 kg
Package height	105 mm
Package depth	140 mm
Package width	215 mm
Quantity per pack	1 pc(s)

Packaging content
Quick start guide	Yes
Cables included	Thunderbolt
AC adapter included	Yes
Warranty card	Yes

Logistics data
Harmonized System (HS) code	84733020

Other features
Compatible operating systems	Chrome OS 91 or above; Windows 10 or above; macOS 11 or later
USB ports quantity	4
