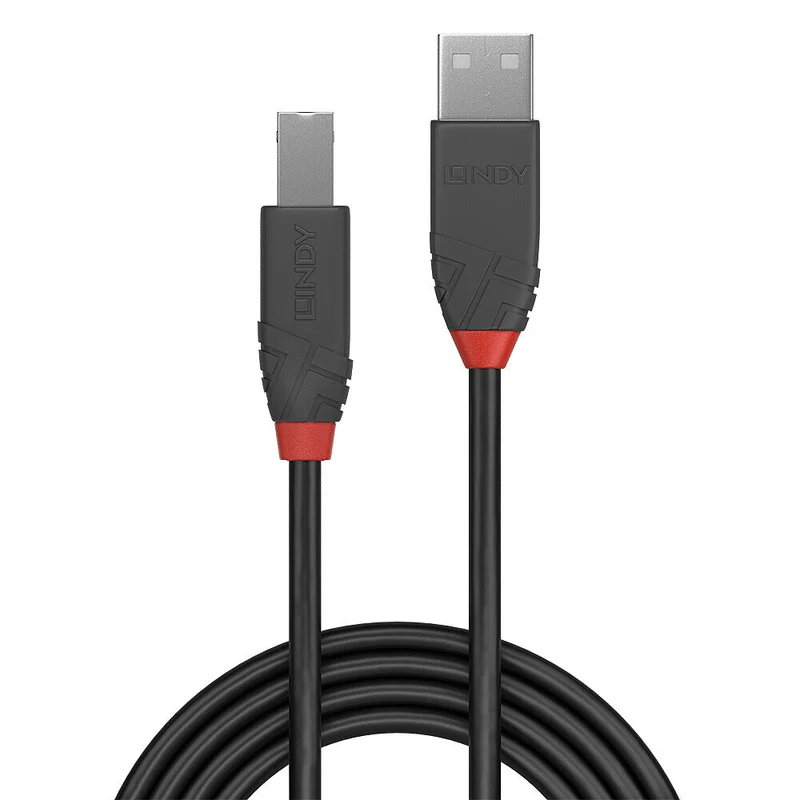

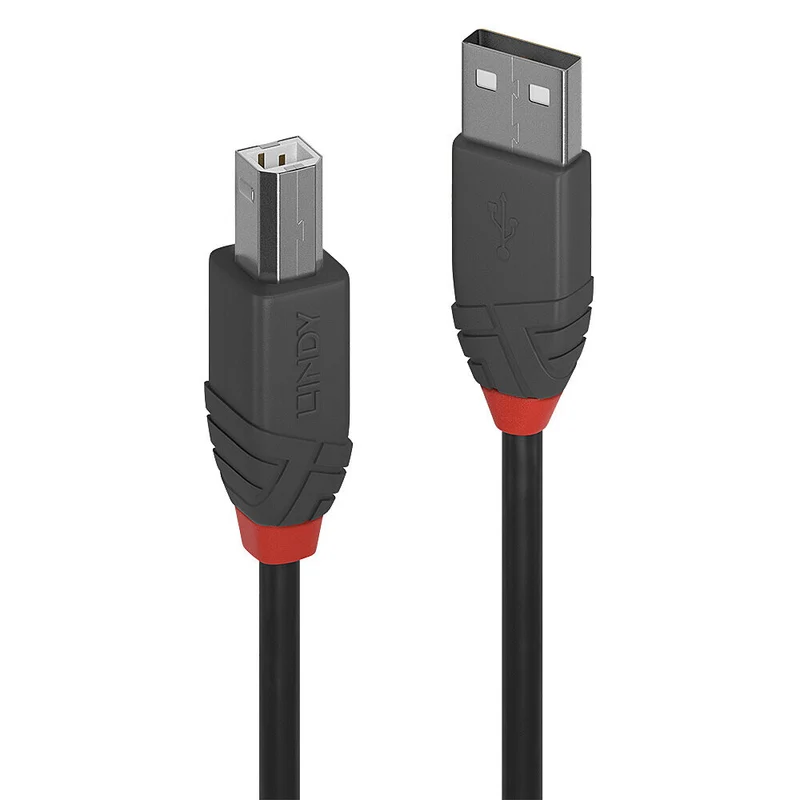

Lindy 3m USB 2.0 Type A to B Cable, Anthra Line

3m USB 2.0 Type A to B Cable, Anthra Line

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m.

Features
Certification	RoHS, REACH, UL
Nominal attenuation	5.8db/km
Product colour	Black
Cable type	Round cable
Maximum data transfer rate	0.48 Gbit/s
Connector housing material	Polyvinyl chloride (PVC)
Conductor material	Tinned copper
Connector shielding	Yes
Connector shield material	Aluminium
Cable jacket material	Polyvinyl chloride (PVC)
Connector contacts plating	Gold
Contact material	Copper
Connector material	Nickel
AWG wire size	26/28
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Connector 2 gender	Male
Connector 1 gender	Male
Connector 2	USB B
Connector 1	USB A
Cable length	3 m
USB version	USB 2.0

Weight & dimensions
Connector 2 dimensions (WxDxH)	11.8 x 35 x 10.2 mm
Connector 1 dimensions (WxDxH)	15.5 x 35 x 7.8 mm
Bend radius (min)	1.6 cm
Cable diameter	4.4 mm

Packaging data
Package type	Polybag

Packaging content
Quantity per pack	1 pc(s)

Operational conditions
Storage temperature (T-T)	0 - 60 °C
Operating temperature (T-T)	0 - 60 °C

Logistics data
Harmonized System (HS) code	84733080
