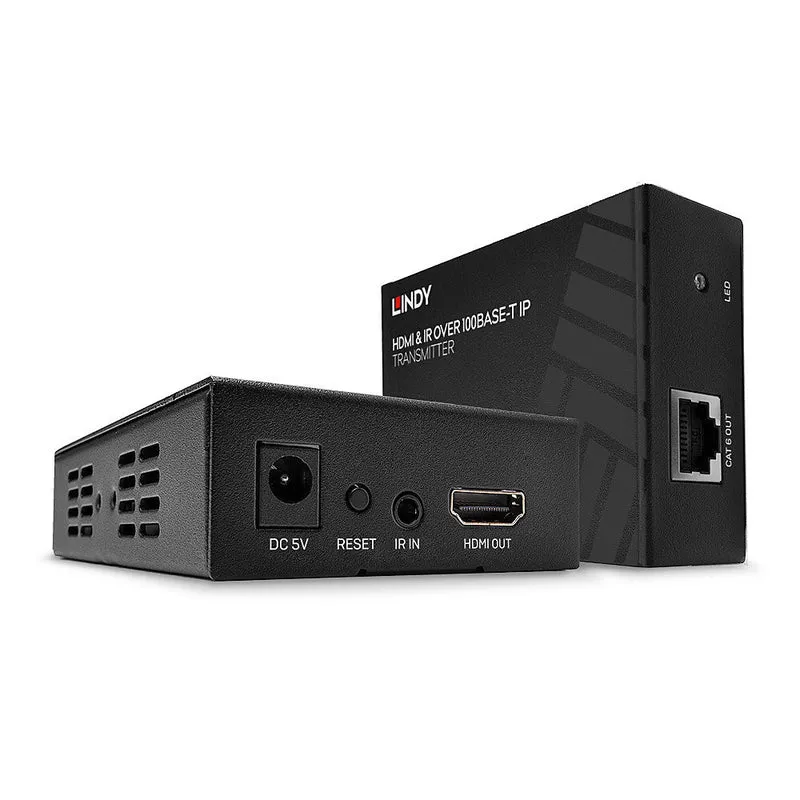

Lindy HDMI & IR over 100Base-T IP Extender

HDMI & IR over 100Base-T IP Extender

Distribute HDMI signals 1-1, 1-many or many-many as part of a networked installation
Supports resolutions up to 1920x1080@60Hz 4:4: 4 8bit
Supports IR extension from the transmitter
Add additional receivers to the network for larger scale distribution
2 year warranty

IP extenders provide reliable extension of HDMI signals on a network connection, allowing for point to point and mixed configurations when combined with network equipment such as switches. Utilising IP connectivity ensures a low cost, scalable extension solution that can be easily setup for a variety of small or larger scale scenarios.

The Lindy HDMI & IR over IP extender is a complete, low cost solution for extending HDMI signals across long distances via a local network setup. As a point to point connection, the extender supports distances up to 100m using Cat.6 cable, or when combined with a network switch can be expanded for much larger distribution systems with up to 3 layers of network equipment. Adding additional receivers (38129) provides additional flexibility to the setup to distribute content into various locations or displays at distance, great for use in retail, connected office installations or educational setups.

For 1 to many and many to many set-ups, a managed network switch is required to be able to distribute data streams.

Supporting resolutions up to Full HD 1920x1080@60Hz 4:4:4 8bit, this extender provides high quality content, perfect for eye catching digital signage, premium residential installations or AV distribution in hospitality. IR extension also provide simple control via an included IR emitter and receiver cable using an IR remote.

Please Note: Either use a dedicated network, or network components which support port based VLAN.

Please Note: The HDMI over IP Extender distributes in full 1080p resolution using a form of video compression which is barely perceptible. Presentations and static desktop displays/images will have a similar loss of sharpness similar to standard JPEG compression.

Features
Certification	CE, UKCA, FCC, REACH, RoHS
Product colour	Black
LED indicators	Yes
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Bandwidth	4.95 Gbit/s
Audio formats supported	PCM
Image formats supported	JPG
HDCP	Yes
Material	Metal
Colour depth	8 bit
3D	No
Consumer Electronics Control (CEC) support	No
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Infrared (IR) frequency range	20 - 60 kHz
Supported network protocols	IP
Audio output channels	2.0 channels
HDCP pass-through	Yes
Audio system	stereo
Maximum refresh rate	60 Hz
Maximum transfer distance	100 m
Chipset	Taifatech 680
Cable types supported	Cat5e, Cat6
Maximum resolution	1920 x 1080 pixels
Type	AV transmitter & receiver

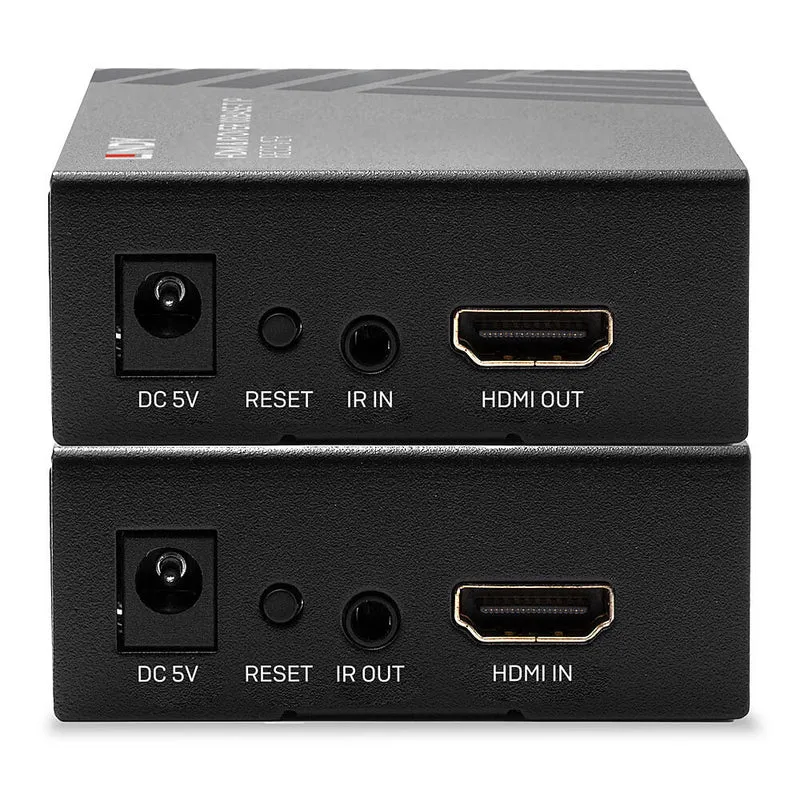

Ports & interfaces
DC-in jack	Yes
Remote (IR) input	1
Remote (IR) output	1
Video in	1
Video out	1
HDMI in	1
Number of HDMI outputs	1
HDMI version	1.2
RJ-45 output ports	1
RJ-45 input ports	1
Ethernet LAN	Yes
Connectivity technology	Wired

Power
Power note	5.5/2.1mm DC
External power adapter	Yes
Power consumption (max)	3 W
Input current	1 A
Operating voltage	5 V
AC input frequency	50 - 60 Hz
AC input voltage	100-240 V

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%

Weight & dimensions
Transmitter weight	245 g
Transmitter dimensions (WxDxH)	100 x 26 x 65 mm
Receiver weight	245 g
Receiver dimensions (WxDxH)	100 x 26 x 65 mm

Packaging data
Package type	Box
Package weight	850 g
Package height	60 mm
Package depth	230 mm
Package width	260 mm

Packaging content
Manual	Yes
Included power plug types	AU, EU, UK, US
IR extender included	Yes
IR emitter included	Yes
AC adapter included	Yes

Technical details
Compliance certificates	REACH, RoHS
